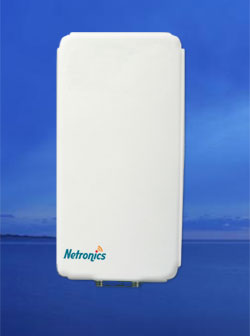

ELECTRICAL |
|
|
FREQUENCY RANGE |
3.3-3.8 GHz
15 dBi (min) @ 3.3-3.4GHz |
|
GAIN |
17 dBi ± 0.5dBi (min) @ 3.4-3.7GHz
16 dBi (min) @ 3.7-3.8GHz |
|
VSWR |
1.5:1 (typ) 1.7:1 (max) |
|
AZIMUTH BEAMWIDTH @ 13dBi (3.3-3.7GHz) |
60•± 4• |
|
AZIMUTH BEAMWIDTH @ 12dBi (3.7-3.8GHz) |
60•± 4• |
|
POLARIZATION
|
Linear Vertical |
|
ELEVATION
BEAMWIDTH |
10• (typ) |
|
SIDELOBES LEVEL - AZ
EL |
ETSI EN 302 085 v1.1.2 CS3
ETSI EN 302 085 v1.1.2 CS3 @
3.3-3.7GHz |
|
CROSS POLARIZATION |
ETSI EN 302 085 v1.1.2 CS3 |
|
|
-20 dB (max)
-40 dB @ 3.3-3.4GHz |
|
F/B RATIO |
-43 dB (max) |
|
INPUT IMPEDANCE |
50 (ohm) |
|
INPUT POWER |
6W (max) |
|
LIGHTNING PROTECTION |
DC Grounded |
|
MECHANICAL
|
|
|
DIMENSIONS (LxWxD) |
500x200X30 mm (max) |
|
WEIGHT |
1.5 kg (max) |
|
CONNECTOR |
N-Type Female |
|
RADOME
|
Plastic |
|
BASE PLATE
|
Aluminum with chemical conversion
coating |
|
MOUNTING KIT |
NMK 519 |
|
ENVIRONMENTAL
|
|
|
TEST
|
STANDARD |
DURATION |
TEMPERATURE |
NOTES |
|
LOW TEMPERATURE |
IEC 68-2-1 |
72 h |
-45• C |
- |
|
HIGH TEMPERATURE
|
IEC 68-2-2 |
72 h |
+70• C |
- |
|
TEMP. CYCLING
|
IEC 68-2-14 |
1 h |
-45•C+70•C
|
3 Cycles |
|
VIBRATION
|
IEC 60721-3-4 |
30 min/axis |
- |
Random 4M3 |
|
SHOCK MECHANICAL
|
IEC 60721-3-4 |
- |
-
|
4M3 |
|
HUMIDITY
|
ETSI EN300-2-4 T4.1E |
144 h |
- |
95% |
|
WATER TIGHTNESS
|
IEC 529 |
- |
- |
IP67 |
|
SOLAR RADIATION
|
ASTM G53 |
1000 h |
- |
- |
|
FLAMMABILITY
|
UL 94 |
- |
- |
Class HB |
|
SALT SPRAY
|
IEC 68-2-11 Ka |
500 h |
- |
- |
|
ICE AND SNOW
|
- |
- |
- |
25mm Radial |
|
WIND SPEED
|
SURVIVAL |
-
|
- |
220 Km/h |
|
|
OPERATIONDURATION |
- |
- |
160 Km/h |
